Adjustable Dock Seal

Chalfant Series 200 & 205 Adjustable Dock Seal provides the best possible seal between the building and truck at your loading dock. Designed with the common variety of trucks in mind.

Standard Construction Features Summary


Beveled side pads to provide tight seal against truck and prevent weather, dust, bugs,exhaust fumes from entering building.

 High resilent premium grade polyurthane foam, bonded with high quality liquid adhesive to kiln dried wood, all are encased inside the dock seal fabric cover to protect it from abuse and the elements (optional 14 gauge galvanized steel backing also available).

 All pads are equipped with air vents to help minimize rupture, and drain holes equipped with brass grommet type drain holes to reduce moisture build-up.

18” Metal back head pad is counterbalance by torsion spring & travels in tracks (Series 200) or by counterbalance weight & travel in tracks (Series 205).  Wide variety of tested high quality fabrics available.

 One (1) year Guarantee against manufacturing defects in material & workmanship from date of installation.*(see warranty)

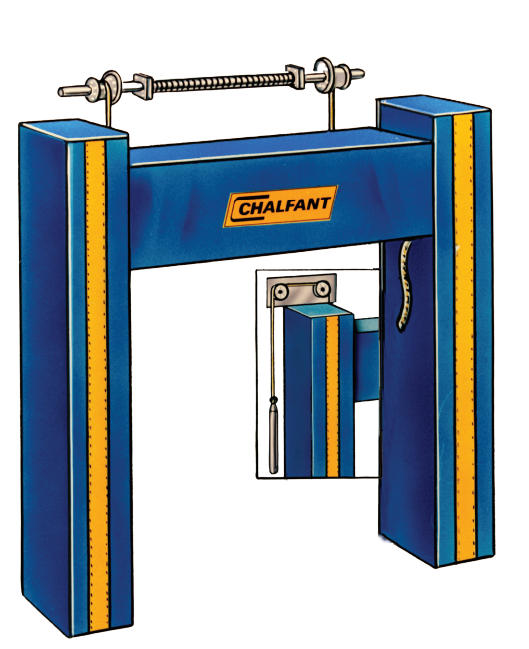

Shown with optional full length guide stripe
3-in-1 Guardian Dor-Seal System Options
General Options

Chalfant has pioneered,

developed and provided the industry with quality loading dock equipment since 1940. Safe, affordable, reliable dock equipment, to meet your application needs.
Select Base And Unit Color
Note: Samples of materials are available upon request, consult Chalfant for other available colors.
Select Optional Contact Face
Select Contact Fabric
Consistent with our policy of continuing product improvement, we reserve the right to change these specifications without notice or obligation.

Series 200 & 205 Adjustable Dock Seal

General Information

Pleats On Head Curtain Corners
Inside Wear Face
Inside Wear Face
Guide Stripe:
Approcah(Required)

Standard Seal Information

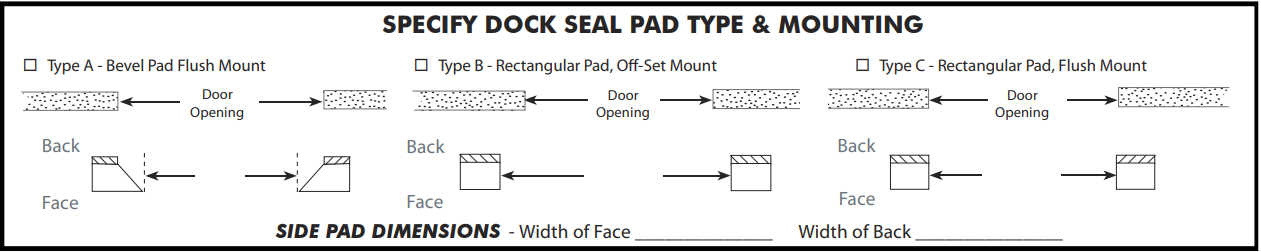

Side Pad Dimensions:
Pad Height:
Bottom Draft Flaps:
Front of Seal Opening:

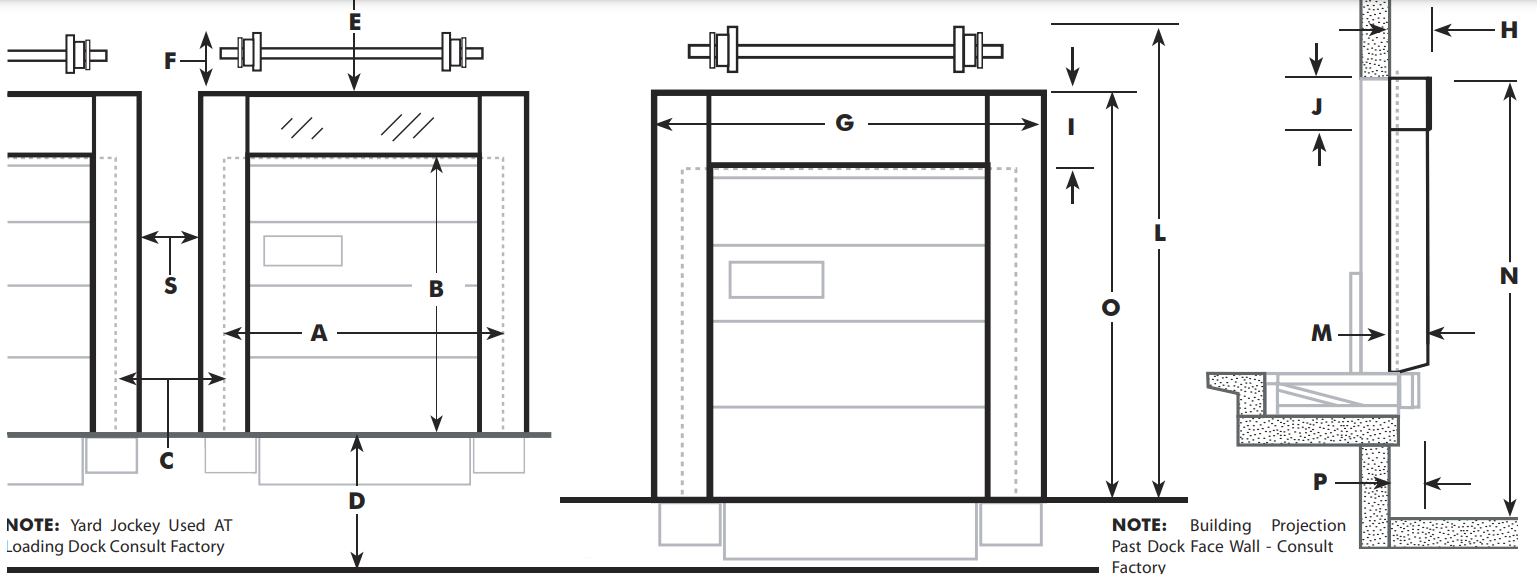

Overal Outside Unit Dimensions
Drop Curtain Height-K
Foam Front Specify

Truck Service Range
