Flex Dock Shelter

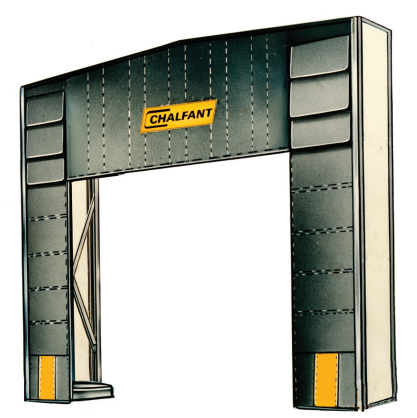

Series 700 Flex Shelter

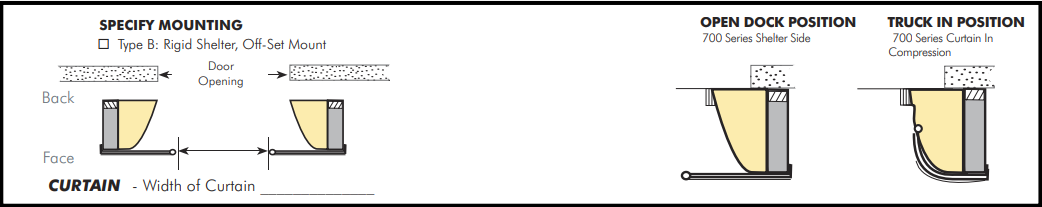

Chalfant Series 700 Flex Shellter to serve as an effective yearround enviromental control, protection, sealing at truck dock loading and unloading areas. The general-purpose Series 700 Flex Shelter is completely automatic. The spring loaded frame is compressed when the header curtain is contacted by an incoming truck with the vertical front curtains and bottom seal pads moving inward to the truck sides to complete the seal. When the truck has completed its docking movement, the shelter is held snug against it by the spring loaded frame. As the truck moves away, the shelter returns to its original shape.


Standard Construction Features Summary


The Series 700 Flex Shelter provides tight seal between your building and truck/trailer which aid in preventing weather, dust, bugs, exhaust fumes from entering building.

Heavy-duty steel square tube frames top and sides covered with vinyl cover.

Raked header to allow for drainage (optional).

Spring loaded frame compression creates a tight seal around truck.

Wide variety of tested high quality fabrics available.

One (1) year Guarantee against manufacturing defects in material & workmanship from date of installation.*(see warranty)

Series 700 Flex Dock Shelter
General Options
Stock Model(s) Call For Availibility

Chalfant has pioneered,

developed and provided the industry with quality loading dock equipment since 1940. Safe, affordable, reliable dock equipment, to meet your application needs.
Select Base Fabric
Note: Samples of materials are available upon request, consult Chalfant for other available colors.
Select Unit Color
Consistent with our policy of continuing product improvement, we reserve the right to change these specifications without notice or obligation.

Series 700 Flex Shelter

General Information

Guide Stripes:
Approach:(Required)
Approach:(Required)
Approach:(Required)

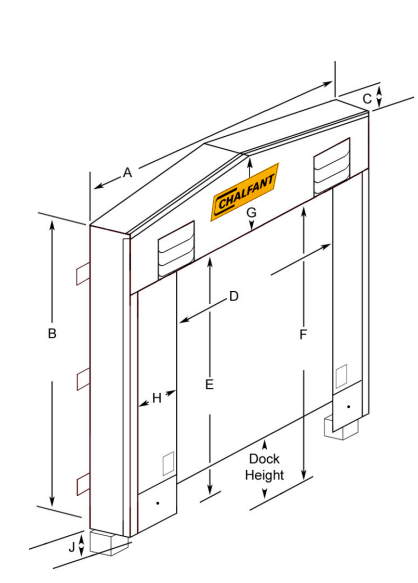

Standard Shelter Information

Unit Projection:
tom Draft Pads:(Required)
Front of Seal Opening:
Overall Outer Dimensions:
