Hydraulic Dock Levelers

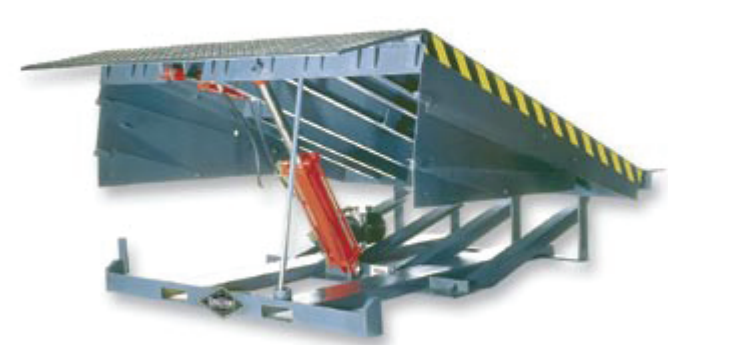

Series H1 & H2 Hydraulic Dock Levelers

Hydraulic: 1 hp., l.3 G.P.M. Hydraulic

Deck and Lip 25,000; 30,000; 35,000; 40,000; and 45,000 lb. Dynamic Capacities

6’, 6’ 6”, and 7’ Widths 6’, 8’, and 10’ Lengths



H1 Series Shown

Ruqqed Chalfant Levelers Keep Workinq For You.

P

ully hydraulic H1 Series Levelers offer solid-stateproximity sensorstocontroldeck and lip functions, including automatic return to safe cross trau001fc position when truck departs. Lip hinge featuresfull-width, cold roll CF 1045 steel pin and seamless tubing for exceptionally heavy loads. Lip keepers serve as night locks for security and provide safe cross-trau001fc support when unit is stored.


Warranty CHALFANT

ou001eers a One (1) year Warranty against manufacturing defects in material & workmanship from date of installation. *Excludes any failure caused by improper application, improper installation, damage caused by damaged trucks ortrailers, overloading, abuse or negligence, are not covered by warranty.

Easy To Install And Easy To Operate

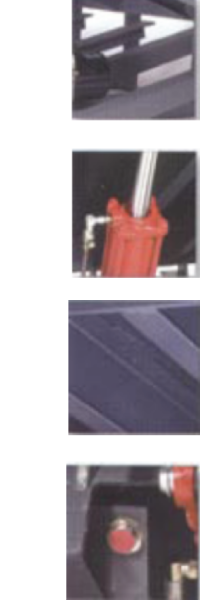

Exclusive CHALFANT Base Frame Support Struts make our Hydraulic Series the strongest and safest Levelers in the industry today!


The H1’s hydraulic system features a 4” Main Cylinder with a 2” ram. Inline Safety Stop guards against free-fall in the event of premature truck departure.







CHALFANT’s solid steel Structural “C” Channel ou001eers matchless deck support-providing a 39% greater resistance to elastic bending moments than other industry designs.


Solid-state Proximity Sensors (H1 only) control all Levelerfunctions, includingautomatic returntocross-traf- u001dc position upon truck departure.

ALL CHALFANT Levelers meet or exceed the performance
requirements of CS202-56., O.S.H.A., andA.N.S.I. MH14.1-1984

Consistent with our policy of continuing product improvement, we reserve the right to change these specifications without notice or obligation.

Series H1 & H2 Hydraulic Dock Levelers

Durability

Deck and lip are constructed of 55,000 lb. Minimum Yield Steel Tread Plate

Deck support beams are engineered with a Solid Steel Structural “C” Channel, fully welded to Full-width Header Plate.

Regenerative Main and Lip Cylinders provide dual-sided lubrication for all hydraulic seals.

Main cylinder is 4” in diameter with a 2” diameter ram.

Extra Heavy Rear Angle with Strategically Placed Gussets provides maximum structural support and frame strength.

Continuous Hinge Design with Grease Fittings and Dock Bumpers included as standard with each unit.

Molded Bumpers protect dock face and Leveler from truck damage


Easy Installation

Custom Rear Angle is two inches wider than the Leveler, providing extra area to weld at both ends.

Front and rear Forklift Slots provide easy access for maneuvering and installation.

Side Ports allow unit to be suspended and lowered into pit from dock u001door.



CHALFANT ou001fers a complete line, of u001enely crafted, technologically advanced loading dock equipment including Mechanical and Hydraulic Pit Levelers, Edge-of-Dock and Top- of-Dock Levelers, Portable Dock Boards, Vehicle Restraints, Dock Seals and Shelters, and other quality accessories. Just call us for personal, professional customer assistance and responses to all of your product needs.




Call 1-216-521-7922

Simple Operation

All operations are push-button controlled from a single, pre-wired Wall Mounted Remote.

Leveler can be recycled with the truck in position, or after the truck departs by depressing the start button

Automatic Lip extends and locks as main cylinder raises the platform; descends upon truck departure.

Solid-state Proximity Sensor electronically recycles the Leveler when the truck departs (H1 only).

Operating Range of 12” above and 12” below dock.


Safety

Hydraulic system includes an Inline Safety Stop to prevent free-fall in the event the unit suddenly becomes unsupported.

Power unit is totally enclosed, factory wired, and tested per speciu001ecations. All 60HZ units.

Remote box meets N.E.M.A. 12 requirements.

H1 Series Solid-state Proximity Sensors automatically return Leveler to safe cross-trau001cc position when truck departs.

Lip Keepers serve as night locks for security and provide Safe Cross-trau001cc Support
when unit is stored. Deck tilts to a maximum of 4” from side to side, compensating for unlevel trucks.

Full-range Toe Guards protect workers from injury during loading and unloading.

Base Frame Support Struts, exclusive to CHALFANT, transfer pull-out forces of unsupported
Leveler into the u001door of the pit-making this the strongest and safest Leveler on the market today!



H2 Series




Hydraulic: 1 hp., 1 G.P.M. 25,000;
30,000; 35,000; 40,000; and 45,000
lb. Dynamic Capacities 6’,6’ 6”, and
7’ Widths 6’, 8’, and 10’ Lenqths
