L-Pad Curtain Dock Seal

Series 100 Standard Dock Seal

Chalfant Series 300 “L” Pad Cutain Dock Seal prprovides a tight seal between the building and truck at your loading dock. Designed with the variety of trucks using rear step bumpers/lift gates and various truck heights that can arrive at your dock in mind.


Standard Construction Features Summary


The Series 300 “L” Pad Curtain Dock Sealprovides a tight seal against truck and prevent weather, dust, bugs,exhaust fumes from entering building.

High resilent premium grade polyurthane foam, bonded with high quality liquid adhesive to kiln dried wood, all are encased inside the dock seal fabric cover to protect it from abuse and the elements (optional 14 gauge galvanized steel backing also available).

All pads are equipped with air vents to help minimize rupture, and drain holes equipped with brass grommet type drain holes to reduce moisture build-up.

Hood style head curtain that services the wide variety of trucks at your loading dock

Wide variety of tested high quality fabrics available.

One (1) year Guarantee against manufacturing defects in material & workmanship from date of installation.*(see warranty)

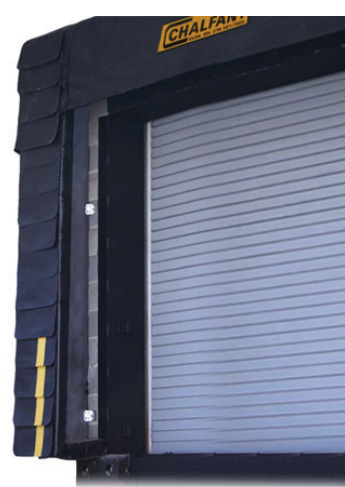

Shown with optional 8” exposure guardian pleats
3-in-1 Guardian Dor-Seal System Options
General Options
The Series 300 “L” Pad Curtain Dock Seal features a unique design that acts like a dock shelter and dock seal combined. The Series 300 provides similar projection of a dock shelter and a tight fit of a dock seal, while allowing full access to the rear of the trailer and yields under off-center truck impact, due to improper positioning at the loading dock.

Chalfant has pioneered,

developed and provided the industry with quality loading dock equipment since 1940. Safe, affordable, reliable dock equipment, to meet your application needs.
Select Base Fabric And Unit Color
Note: Samples of materials are available upon request, consult Chalfant for other available colors.
Select Optional Contact Face
Select Contact Fabric
Consistent with our policy of continuing product improvement, we reserve the right to change these specifications without notice or obligation.

Series 300 “L” Pad Curtain Dock Seal

General Information

Inside Wear Face
Guide Stripe:
Approcah(Required)

Standard Seal Information

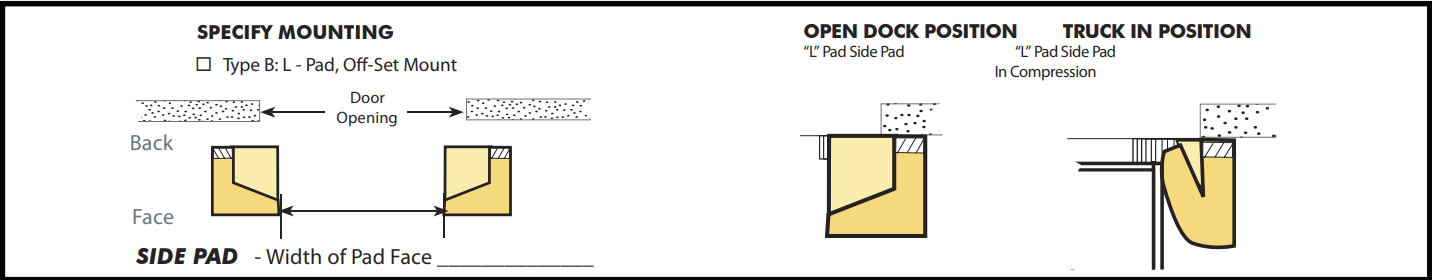

Side Pad Dimensions:
Bottom Draft Flaps:
Front of Seal Opening:

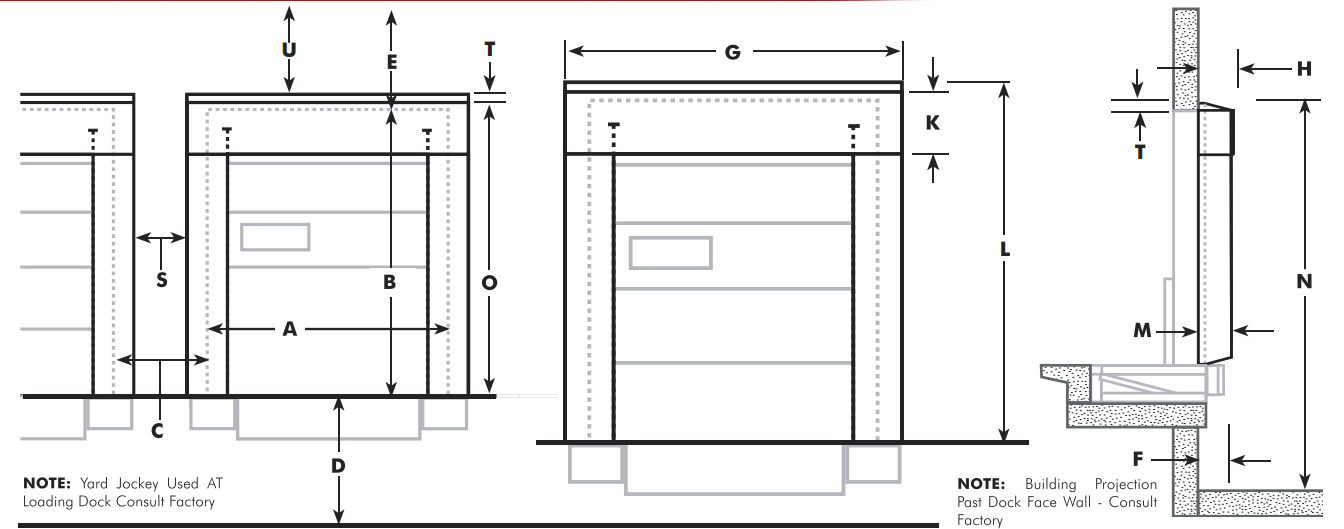

Overal Outside Unit Dimensions
Drop Curtain Height-K
Foam Front Specify

Truck Service Range
