Mechanical Dock Levelers




Series MPL Mechanical Dock Levelers




20,000; 25,000; 30,000; 35,000; 40,000; and 45,000 lb. Dynamic Capacities (Larger Capacities Available)

6’, 6’6”, and 7’ Widths 6’, 8’, and 10’ Lengths (Custom Sizes Available)

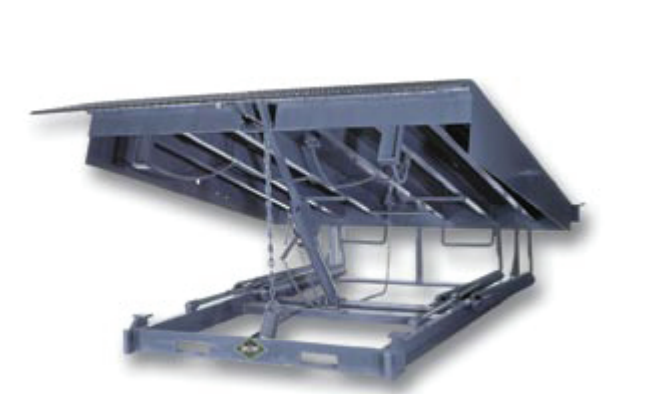

MPL Series Shown

Dependable CHALFANT Levelers Keep Workinq For You.



Ou001fering a variety of dynamic capacities, the P2000 Series Leveler provides 18” and 20” lip options, in addition to many other custom features. Dual 60,000 lb. safety legs provide additional strength and support. Deck and lip are constructed of 55,000 lb. minimum yield steel tread plate. Lip keepers serve as night locks for security and provide safe cross-trau001ec support when unit is stored. Dock bumpers and grease u001dttings on lip hinge are standard with each unit.


Warranty CHALFANT

offers a O ne (1) year Warranty against manufacturing defects in material & workmanship from date of installation. *Excludes any failure caused by improper application, improper installation, damage caused by damaged trucks or trailers, overloading, abuse or negligence, are not covered by warranty.

Easy To Install And Easy To Operate

CHALFANT’s solid steel Structural “C” Channel ou001fers matchless deck support-providing a 39% greater resistance to elastic bending moments than other industry designs.




Positive Hold-down Device allows up and down u001coat when in service.





Fully mechanical, single-handed Pullchain Operation means NO LIFTING or STRAINING.





Direct Extension Spring Design has no moving parts- nothing to service!

Consistent with our policy of continuing product improvement, we reserve the right to change these specifications without notice or obligation.

Series MPL Mechanical Dock Levelers

ALL CHALFANT Levelers meet or exceed the performance requirements of CS202-56., O.S.H.A., andA.N.S.I. MH14.1-1984

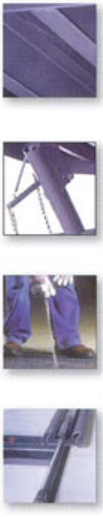

Durability

Deck and lip are constructed of 55,000 lb. Minimum Yield Steel Tread Plate

All CHALFANT ‘MPL’ Series Levelers are exclusively equipped with Solid Steel Structural “C” Channel for maximum deck support. Each beam isfully welded to a Full-width Header Plate (6”) at the front of the Leveler

Direct Extension Spring Design has no moving parts-nothing to service!

ExtraHeavy RearAnglewith Strategically PlacedGussets provides maximum structuralsupport and frame strength.

Molded Bumpersincluded to protect dock face and Levelerfrom truck damage.

Continuous Hinge Design with Grease Fittingsincluded asstandard with each unit.


Easy Installation

Front and rear Forklift Slots provide easy accessfor maneuvering and installation.

Side Ports allow unit to be suspended and lowered into pit from dock u001foor

Custom engineered Rear Angle is two inches wider than the Leveler, providing extra area to weld at both ends.



CHALFANT ou001ders a complete line of u001cnely crafted, technologically advanced loading dock equipment including Mechanical and Hydraulic Pit Levelers, Edge-of-Dock and Top-of-Dock Levelers, Portable Dock Boards, Vehicle Restraints, Dock Seals and Shelters, and other quality accessories. Just call us for personal, professional customer assistance and responses to all of your product needs.




Call 1-216-521-7922

Easy Installation

Front and rear Forklift Slots provide easy accessfor maneuvering and installation.

Side Ports allow unit to be suspended and lowered into pit from dock u001foor

Custom engineered Rear Angle is two inches wider than the Leveler, providing extra area to weld at both ends.


Simple Operation

Conveniently located Pull-Chain provides easy activation of deck and lip.

Direct extension Spring Counterbalance provides easy walk-down.

Operating Range of 12” above and 12” below dock allows Leveler to be recycled with the truck in position.

Automatic Lip locks into position when extended and releases when unit is walked down to position on truck floor


Safety

Maintenance Struts are a standard feature on all MPL Series Levelers.

CHALFANT’sCounterbalance System operatesonsimple,DirectExtensionSpringDesignwith no moving parts. Adjustment Nut islocated at the front of the Levelerforsafe, easy access.

Lip Keepersserve as nightlocksforsecurity, and provide safeCross-trau001ec Supportwhen unitis stored. Deck tills to a maximum of 4” from side to side to compensate for unlevel trucks.

Automatic Lip locks into position when extended and releases when unit is walked down to position on truck floor

Working Range Toe Guards protect workersfrom injury during loading and unloading.



H2 C Series




25,000 lb. and 30,000 lb. Dynamic Capacities

Dealer Locations.


CHALFANT Loading Dock Equipment is available nationwide. For the location of your nearest CHALFANT Dealer, call us at 1-216-521-7922.
