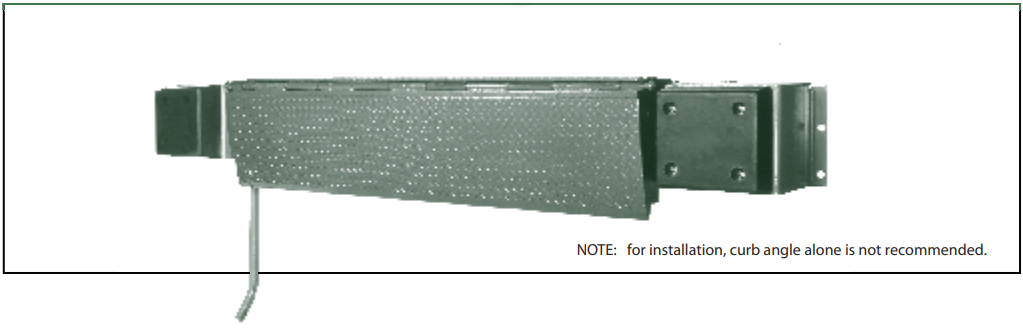

Bar Lift Edge-of-Dock Leveler

ALL BAR LIFT EDGE-OF-DOCK FEATURES

Affordable

The affordable choice for many loading dock applications that require simple operation, low-maintenance, long-life, full width access and dynamic ramp capacities. Simply mounts to the face of the dock, typically without expensive concrete work.

Bar Type Actuation

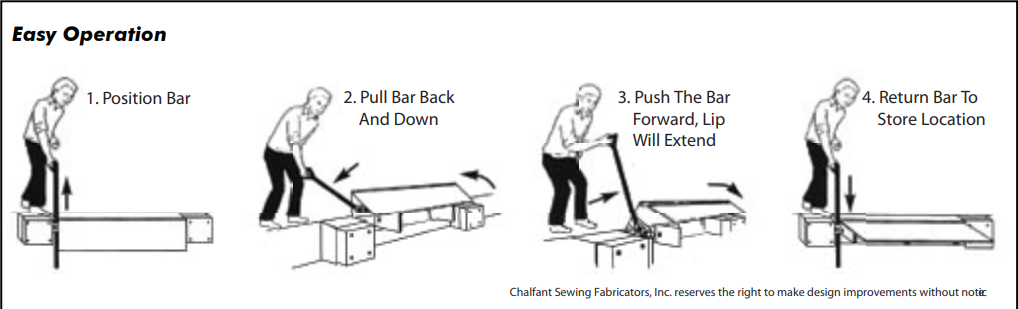

• Simple Mechanical Operation
• Spring Assist Combined With Bar As A Lever, To Minimize Lifting Eu001fort, Manually Activated Will Automatically Extend Lip Onto The Truck Bed
• Unit Stores Automatically Upon Truck Departure

Low-Maintenance

• Fewer Moving Parts - Simple Spring Assist
• Less Downtime - Easy Adjustments Made With Simple Hand Tools

Long-Life

• High Strength Safety Four-Way Tread Plate On Deck And Lip Ensures Lasting Stability and Durability In All Our Levelers
• Formed Gussets Give Better Structural Support In Stored Position
• Rugged Formed Bump Blocks And Molded Cord Rubber Bumpers Protect Dock Face And Leveler From Truck Damage

Safety

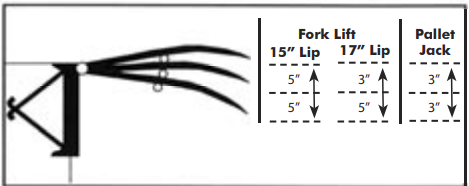

• Serves A Full 10” Range; 5” Above Dock And 5” Below Dock
• Units Meet With Or Exceed Federal Occupational Safety And Health Standard Requirements For Dock Boards Dated June 27th, 1974 And The American Mechanical Engineers Speciu001ecations ANSI MH14.1-1984.

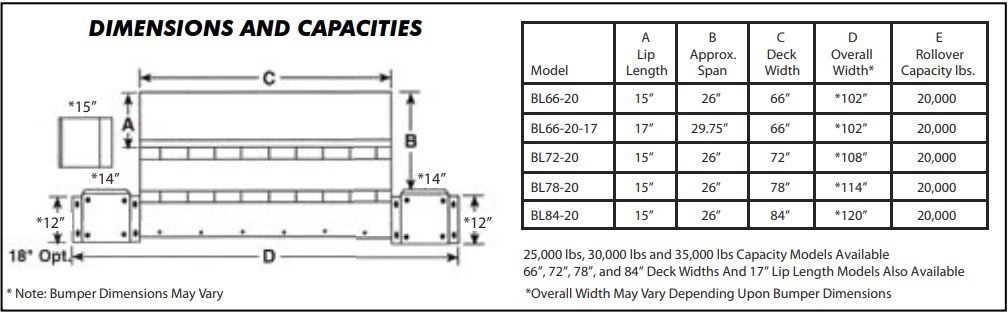

20,000 lb. Dynamic Capacity (25,000, 30,000 and 35,000 lb Capacity Available)

66”, 72” Standard Deck Widths
78”, 84” Optional Deck Widths

102”, 108”, 114” and 120” Overall Widths*
UNITS IN STOCK CALL FOR AVAILABLITY:

66” Wide 20,000 lb Capacity
72” Wide 20,000 lb Capacity

Professional Service For Timely Help And Personal Response

Need Help Contact Direct With Customer Service Call 1-216-521-7922

Consistent with our policy of continuing product improvement, we reserve the right to change these specifications without notice or obligation.

Bar Lift Edge-of-Dock Leveler

Architectural Specifications

• Dock Leveler(S) To Be Model BL From Chalfant Sewing Fabricators, Inc., Cleveland, OH 44102-2325.

•Bar Lift Mechanical Edge-of-dock Leveler To Have Deck Width

Unit Data

• Bar Type Actuation (No Lifting)
•Spring Lift Assist With Simple Adjustment With Hand Tools.
•Continuous Hinge Design
•Deck & Lip High Strength Steel Safety Tread Plate
•Lip Projection: Minimum 12”
” Wide With Approximate Workable Span
” Span, And Rollover Capacity Of
Capacity.
• Bar Lift Feature And Spring Assist Permit Easy Extension Onto Truck (No Lifting Required).

•Unit To Return To Stored Position Automatically Upon Truck Departure

•Self-contained Unit To Mount Externally To Dock Face Without Concrete Pit Forming

•Unit To Include Formed Plate Steel Bump Blocks And Molded Cord Rubber Bumpers.


Dock Bumpers

Formed Steel Bump Blocks Faced With 4” Thick Molded Cord Rubber Bumpers,
Protect Dock Face And Dock Leveler From Truck Damage. Two (2) Per Dock Leveler

One-Year Guarantee

Chalfant Ou001fers A One-Year Guarantee On All Materials And Workmanship. This Warranty Does Not Cover Any Failure Caused By ImproperInstallation,Overloading, Abuse, Vehicle Impact,Negligence Or Failure To Lubricate And Adjust The Equipment Properly. Adjustments And Lubrication Are Not Covered By Warranty.
